Amazon WorkSpaces Multi-Region Disaster Recovery: A Complete Guide

Introduction

Business continuity for virtual desktop infrastructure is no longer optional. When your primary AWS region experiences an outage, your users need to continue working - ideally without even noticing a disruption. Amazon WorkSpaces Multi-Region Resilience (MRR) addresses this challenge by enabling standby WorkSpaces in a secondary region that users can seamlessly failover to.

This guide covers the architecture, implementation steps, and best practices for setting up multi-region disaster recovery for Amazon WorkSpaces Personal.

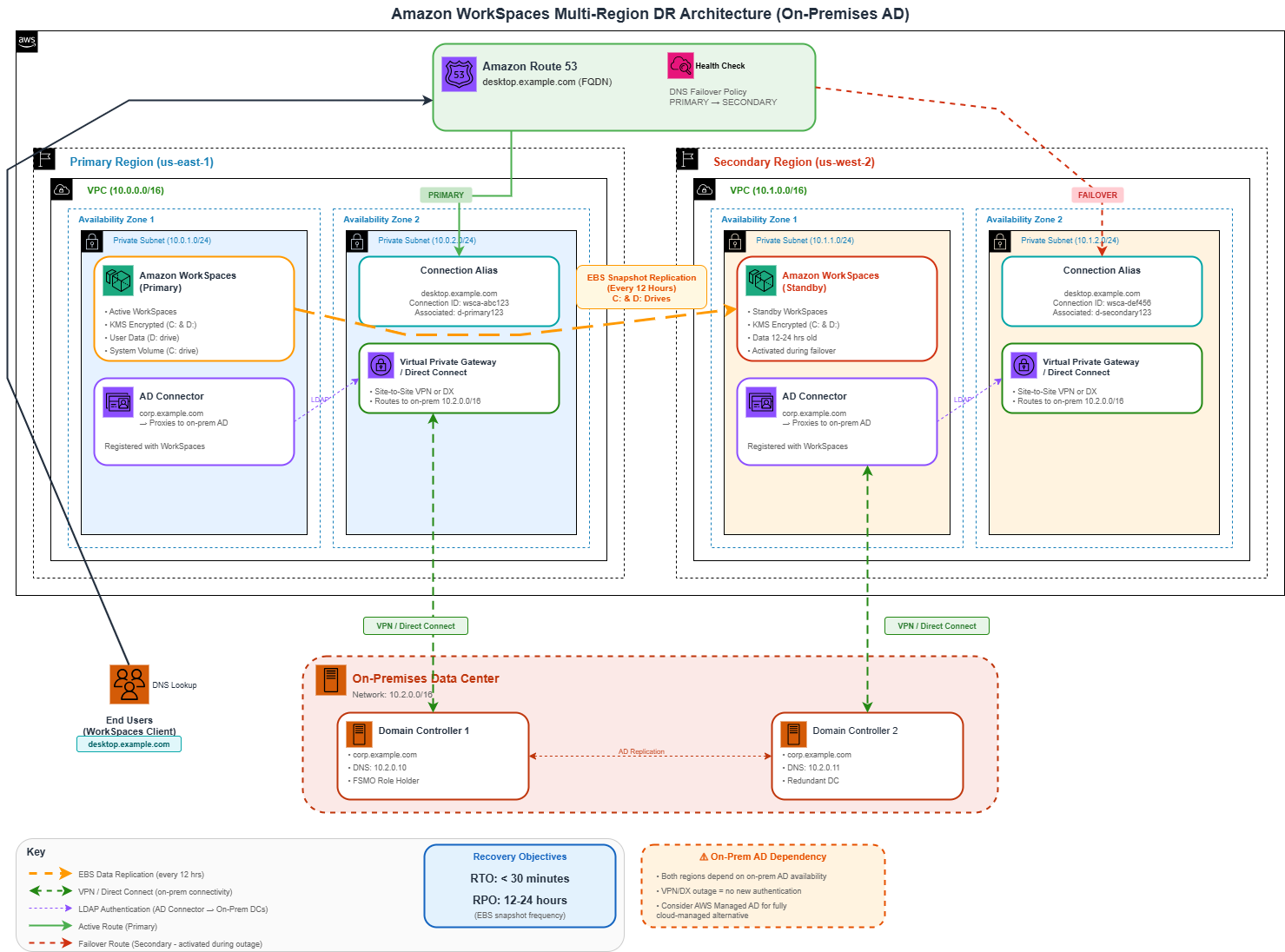

Architecture Overview

The multi-region disaster recovery architecture for Amazon WorkSpaces consists of several key components working together:

• Primary WorkSpaces - Active WorkSpaces in your primary region where users work daily
• Standby WorkSpaces - Provisioned WorkSpaces in a secondary region, ready to activate during failover
• Cross-Region Data Replication - EBS snapshots replicated every 12 hours from primary to secondary
• Connection Aliases (FQDN) - Domain-based registration codes that enable seamless redirection
• Route 53 Health Checks - Monitor primary region availability and trigger DNS failover
• Active Directory - Synchronized directories in both regions (via AD Connector)

How Failover Works

1. Route 53 health check detects primary region failure
2. DNS failover policy updates to point to secondary region
3. Users see connection error and are prompted to log in again
4. Using FQDN registration code, users are redirected to standby WorkSpaces
5. Users access their data (12-24 hours old) and continue working

Prerequisites

Before implementing MRR, ensure you have the following in place:

Directory Requirements

• WorkSpaces created in primary region first
• User directories in both primary and secondary regions with identical usernames
• AD Connector pointing to the same Active Directory in each region
• Primary and secondary Active Directories synchronized for FQDN, OU, and user SID

Service Quotas & Encryption

• Request service quota increase (default limit for standby WorkSpaces is 0)
• Use customer-managed KMS keys to encrypt both primary and standby WorkSpaces
• Update networking drivers (ENA, NVMe, PV drivers) at least every 6 months

Client Requirements

• WorkSpaces client version 3.0.9 or later (Linux, macOS, Windows)
• Web Access is also supported

Supported Regions and WorkSpace Types

Supported Regions

Region	Region Code
US East (N. Virginia)	us-east-1
US West (Oregon)	us-west-2
Europe (Frankfurt)	eu-central-1
Europe (Ireland)	eu-west-1

Supported vs Unsupported WorkSpace Types

Supported	Not Supported
Windows WorkSpaces	Amazon Linux 2, Ubuntu, RHEL
Bring Your Own License (BYOL)	GeneralPurpose.4xlarge, 8xlarge
Standard bundle types	GPU-enabled (Graphics, GraphicsPro)

Implementation Steps

Step 1: Set Up User Directories

Create AD Connector directories in both primary and secondary regions, pointing to the same Active Directory:

# Primary Region (us-east-1)
aws ds connect-directory \
    --name corp.example.com \
    --short-name CORP \
    --password "DirectoryPassword" \
    --size Small \
    --connect-settings \
        VpcId=vpc-primary,SubnetIds=subnet-1a,subnet-1b,CustomerDnsIps=10.0.0.10,10.0.0.11,CustomerUserName=Admin \
    --region us-east-1

# Secondary Region (us-west-2)
aws ds connect-directory \
    --name corp.example.com \
    --short-name CORP \
    --password "DirectoryPassword" \
    --size Small \
    --connect-settings \
        VpcId=vpc-secondary,SubnetIds=subnet-2a,subnet-2b,CustomerDnsIps=10.0.0.10,10.0.0.11,CustomerUserName=Admin \
    --region us-west-2

Step 2: Create Primary WorkSpaces

Launch WorkSpaces for users in the primary region through the console or CLI:

aws workspaces create-workspaces \
    --workspaces \
        DirectoryId=d-1234567890,UserName=jsmith,BundleId=wsb-abcd1234,VolumeEncryptionKey=arn:aws:kms:us-east-1:123456789012:key/mrk-xxx \
    --region us-east-1

Step 3: Create Standby WorkSpaces

1. Open the WorkSpaces console in your primary region
2. Select a WorkSpace and choose Actions → Create standby WorkSpace
3. Select the secondary region and user directory
4. (Optional) Add encryption key and enable data replication
5. Review and create

# Using AWS CLI
aws workspaces create-standby-workspaces \
    --standby-workspaces \
        PrimaryWorkspaceId=ws-abc123,DirectoryId=d-secondary123,VolumeEncryptionKey=arn:aws:kms:us-west-2:123456789012:key/mrk-xxx \
    --region us-west-2

Step 4: Create Connection Aliases

Create FQDN-based connection aliases in both regions:

# Primary Region
aws workspaces create-connection-alias \
    --connection-string desktop.example.com \
    --region us-east-1

# Secondary Region (same FQDN)
aws workspaces create-connection-alias \
    --connection-string desktop.example.com \
    --region us-west-2

Step 5: Associate Aliases with Directories

# Primary Region
aws workspaces associate-connection-alias \
    --alias-id wsca-abc123 \
    --resource-id d-primary123 \
    --region us-east-1

# Secondary Region
aws workspaces associate-connection-alias \
    --alias-id wsca-def456 \
    --resource-id d-secondary123 \
    --region us-west-2

Step 6: Configure Route 53 DNS Failover

Create Health Check

aws route53 create-health-check \
    --caller-reference "workspaces-primary-$(date +%s)" \
    --health-check-config \
        Type=CLOUDWATCH_METRIC,\
        Inverted=false,\
        AlarmIdentifier={Region=us-east-1,Name=WorkSpaces-Primary-Health}

Create Failover DNS Records

// Primary Record
{
  "Name": "desktop.example.com",
  "Type": "TXT",
  "SetIdentifier": "primary",
  "Failover": "PRIMARY",
  "TTL": 60,
  "ResourceRecords": [
    { "Value": "\"ConnectionIdentifierForPrimaryRegion\"" }
  ],
  "HealthCheckId": "health-check-id-for-primary"
}

// Secondary Record
{
  "Name": "desktop.example.com",
  "Type": "TXT",
  "SetIdentifier": "secondary",
  "Failover": "SECONDARY",
  "TTL": 60,
  "ResourceRecords": [
    { "Value": "\"ConnectionIdentifierForSecondaryRegion\"" }
  ]
}

Step 7: Enable Data Replication

1. Go to the primary WorkSpace detail page
2. Scroll to the Standby WorkSpace section
3. Choose Edit Standby WorkSpace
4. Enable data replication and confirm authorization for additional charges
5. Click Save

Data Replication Details

Aspect	Details
Frequency	Every 12 hours
What's Replicated	System volume (C:) and User volume (D:)
Direction	One-way: Primary → Secondary only
Snapshot Type	Initial is full; subsequent are incremental
Data Currency	12-24 hours old during failover
First Replication	Takes longer (full snapshot)

Failover and Recovery Process

During Failover

1. Health check detects primary region failure
2. Route 53 updates DNS to point to secondary region
3. Users see: "We can't connect to your WorkSpace. Check your network connection, and then try again."
4. Users log in again and are redirected to standby WorkSpaces
5. Users access their data (12-24 hours old) and continue working

Post-Failover Recovery

1. Users must manually back up any new data created on standby WorkSpace
2. Log out of standby WorkSpace
3. Wait 15-30 minutes before reconnecting
4. Log back in to be redirected to primary region

Key Limitations

Limitation	Details
No Direct Modifications	Cannot directly modify, rebuild, restore, or migrate standby WorkSpaces
Data Recency	Only 12-24 hours of data available during failover
Concurrent Connections	Don't connect to both primary and standby simultaneously (AD sync issues)
Hibernation	Standby WorkSpaces cannot hibernate; unsaved work is lost if stopped
Running Mode	FSLogix integration only works with Auto-Stop mode, not Always-On

Security Best Practices

• Use KMS Encryption - Encrypt both primary and standby WorkSpaces with customer-managed keys
• IAM Least Privilege - Grant only necessary permissions for connection alias management
• Protect FQDN - If discontinuing cross-region redirection, update DNS to remove the FQDN to prevent phishing
• Monitor CloudTrail - Track all WorkSpaces API calls and connection alias changes

Pricing Considerations

• Standby WorkSpaces - Charged at the same rate as primary WorkSpaces (bundle + running hours)
• Data Replication - Additional monthly charges for EBS snapshot storage and cross-region copy
• Route 53 - Health check costs ($0.50-$2.00/month per check) plus DNS query charges
• Data Transfer - Cross-region data transfer charges for snapshot replication

Optimizing User Experience Across Regions

For organizations with users distributed globally, consider these additional optimizations:

• Test Latency - Use the Amazon WorkSpaces Connection Health Check to measure RTT to different regions
• FSLogix CloudCache - Integrate Microsoft FSLogix for user profile data replication across regions
• Network Drives - Recommend users save work to network drives for cross-region accessibility
• Regular Testing - Conduct periodic failover drills to ensure DNS policies and health checks work correctly

Conclusion

Amazon WorkSpaces Multi-Region Resilience provides a robust disaster recovery solution for virtual desktop infrastructure with minimal operational overhead:

• Sub-30-minute RTO with standby WorkSpaces ready to activate
• Seamless user experience using FQDN-based registration codes
• Automated failover through Route 53 health checks and DNS routing
• Data protection with 12-hour snapshot replication

The key to success is proper planning: ensure your Active Directory is synchronized across regions, configure Route 53 health checks correctly, and communicate clearly with users about using FQDN registration codes instead of region-specific codes.
